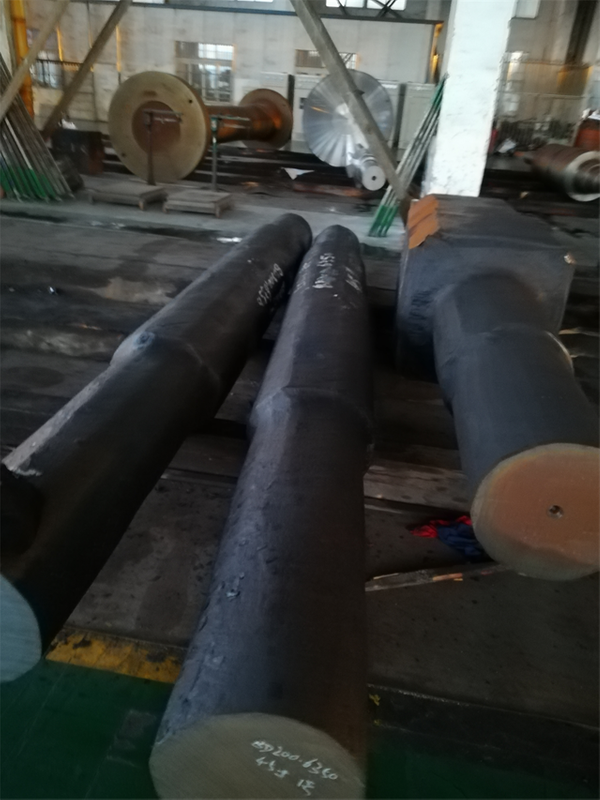

FORGED SHAFT-5

FORGINGS,SHAFT, FORGED SHAFT, FORGED ROLLER, FORGING ROLL
wind power, hydro power, thermal power, nuclear power, mining, petrochemical, pressure vessel, machinery, military, aerospace, etc.
Availability:
Quantity:

图片4图片1图片2图片3

图片5图片6


Forging parts

supply all kinds of forged products what are used in power, oil&gas, transportation, machinery, sugar mill and other industry. Most of the materials are carbon teel, alloy steel, bearing steel, tool steel and stainless steel. Popular designs are bars(round, square, flat or hex.), blanks, rings, step shafts, hollows, spindles, blocks and other special shape acc. to the drawings. Currently, the limitation of production capacity in weight is Max 350MT.

Application

Power: Thermal/Wind/Hydro/Nuclear Power

Turbine shaft/Non-mag. Ring/Impeller/Hydraulic cylinder/Big flange for wind-power industry

Oil and Gas

Hollow bar/Housing/Casing/T block for big Valve/Stabilizer/Drilling collar/Sucker rod

Machinery

Motor shaft/Engine/Gear/Gear box/Conrod/Work roller/Hydraulic cylinder/Crank-shaft

Transportation

Axle/Connecting rod/Flanges/Sleeve/Motor Shaft/Propeller shaft/Coupling/Shaft thrust

Main grades:

Carbon steel: S355J2G3+N, S355NL+N, C20, C45, C35 and ASTM A105/A305, etc.

Alloy steel: 4140, 4130, 4145, 8620, 8640, 4340, 35CrMo4, 42CrMo4, 34CrNiMo6, 20MnCr5, 20CrNiMo, 15CrMo, 12MnMoV, 10CrMo910, 12Cr1MoV, 12Cr2MoVB, X20CrMoV121, 25Mn2V, 20CrMo, Cr11MoV, Cr12WMoV, 40Cr, 35SiMn, 24CrMoV, 18CrMnMoB, 34CrNi2Mo, 18Cr1Mo1VTiB, 20SiMn, 0Cr18Ni9Ti, 1Cr18Ni9Ti, 20HR, 20MnR, 16MnHR, 20MnMoNiCr, S355K2+N, SA738Gr.B, 22NiMoCr37, 18CrNiMo7-6, 18CrNiMo.

Stainless steel: AISI 410, 420, 17-4 PH, F22, 304,321, 316/316L, etc.

Tool steel: D2/1.2379, H13/1.2344, O1/, 1.5919 etc


According to customer drawing or sketch to make it.

Do heat treatment, rough machine, finish machine follow to technical specification.


Max Forging power 12000MT

Unit weight: 10mt-20mt, 21mt-45mt, max unit weight 350mt.
